Red Pitaya STEMlab 125-14 Calibrated Kit - キャリブレーテッド（精度調整）キット

- STEMlab 125-14 キャリブレート済みボード： クレジットカードサイズの計測/コントロールツール、14ビット入出力の高精度、プロ環境向け
- 付属パーツ類は診断キット（Diagnostic Kit）と同じ
- Dual Core ARM Cortex A9、FPGA Xilinx Zynq 7010 SOC、RAM 512MB
- RF入力、出力　チャンネル：各2　バンド幅：50 MHz　サンプルレート：125 Msps
- AUX アナログ入力、出力　チャンネル：各4

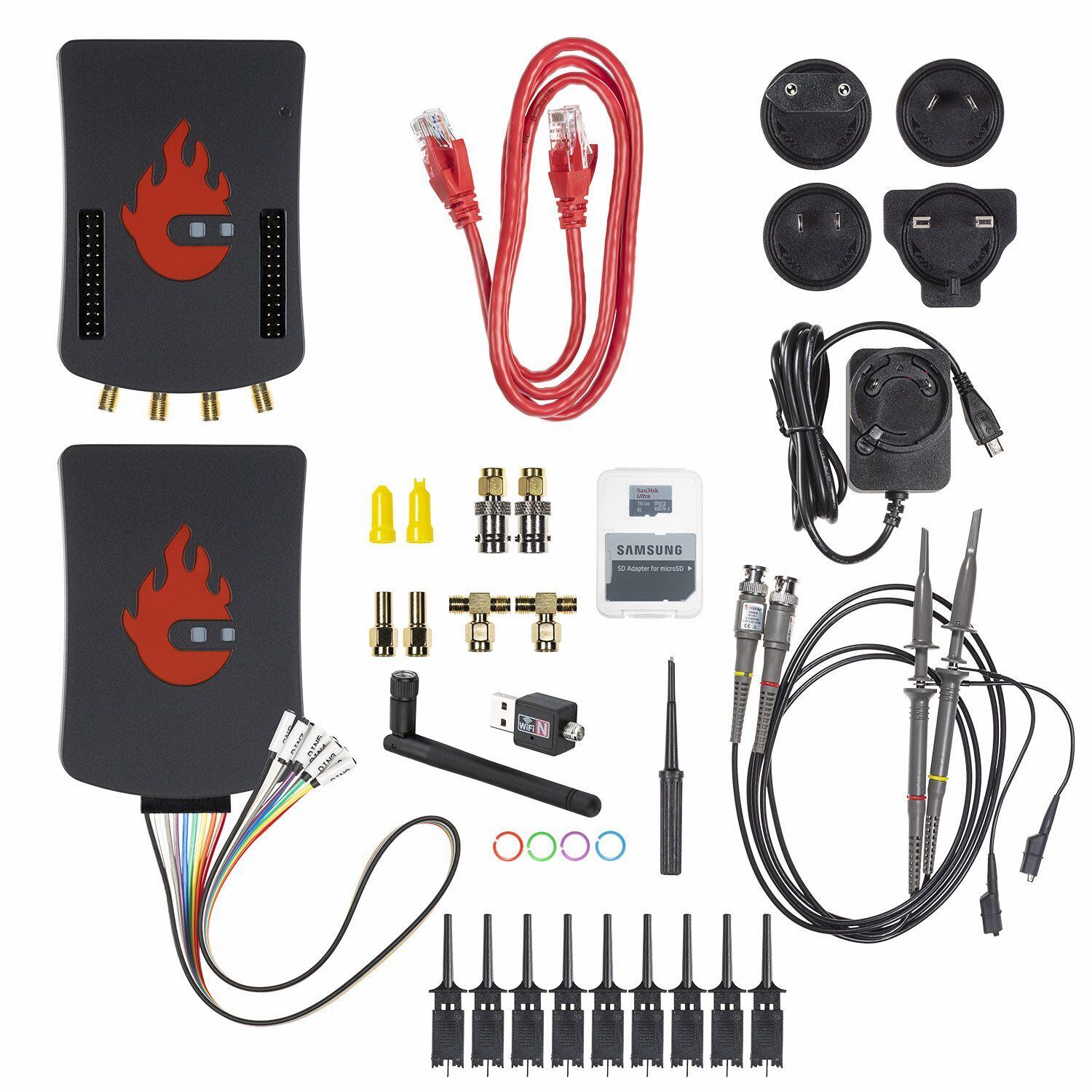

キット内容：
- STEMlab 125-14 board with calibrated Inputs and Outputs
- micro USB power supply adaptor
- microSD card (4 GB) with pre-installed OS
- Ethernet cable (1 m)
- Logic Analyzer Pro
- Aluminium case
- Osciloscope probes x2
- SMA to BCN adapter x2
- 50 ohm termination x2
- SMA T adapter x2
- WIFI dongle


Features:
- High performance hardware at a surprising price tag.
- Replaces most essential instruments: (Oscilloscope, Spectrum analyser, Signal generator, LCR meter)
- LAN or wireless access from any WEB browser via tablet or a PC regardless of the OS (MAC, Linux, Windows, Android, iOS).
- LabView and MATLAB interface.
- Possibility to make your own application and share it with others.
- Open source software.

Dimensions: 107 x 60 x 21 mm


Calibrated Board
- Calibration is performed in noise controlled environment.
Inputs and outputs gains are calibrated with 0.02% and 0.003% DC reference voltage standards.
Input gains calibration is performed in medium size timebase range.
Red Pitaya STEMlab board is a non-shielded device and its inputs/outputs ground is not connected to the earth grounding.
To achieve calibration results stated below, Red Pitaya must be grounded and shielded.

- INPUTS
　- LV settings (+/- 1 V range)： 0.2 %　+/- 0.5 mV
　- HV settings (+/- 20 V range)： 0.4 %　+/2 mv
- OUTPUTS
　- DC Offset： +/- 4 mv
　- DC Gain Accuracy： 0.4 %
　- Ripple(@ 0.5V DC)： 0.4 mVpp


Red Pitaya STEMlab ドキュメンテーション
http://redpitaya.readthedocs.io/en/latest/
